产品描述：

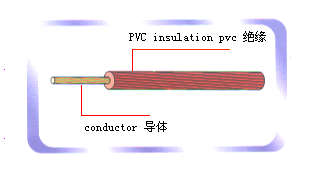

·导体使用单条或绞线28－9AWG裸铜或镀锡铜。
·PVC绝缘
·可通过UL－1及CUL Ftl垂直型耐燃测试。
·使用标准厚度、易剥、截断容易
·具抗酸性、耐油性、防潮等特性
·可使用先镀后绞再镀为导体
| UL style & CUL Type |
Conductor 导体 |
Insulation Thickeness 绝缘厚度 |
Oveall Diameter 完成外径 |
Standad Put-Up 标准长度 |
Condutor Resistance at 20° 导体电阻 | ||
| 线号 | 线数/线径 | 英制 | 公制 | ||||
| AWG | NO./mm | mm | mm | Ft/coil | M/coil | Ohm/kft | |
|
Ull1015 CUL T1(TEW) (Strranded) 绞线 |
26 |
7/0.160 |
0.79 |
2.05±0.10 |
2000 |
610 |
45.20 |
|
24 |
11/0.160 |
2.20±0.10 |
2000 |
610 |
29.30 | ||
|
22 |
17/0.160 |
2.40±0.10 |
2000 |
610 |
16.70 | ||
|
20 |
21/0.180 |
2.55±0.10 |
2000 |
610 |
10.50 | ||
|
18 |
34/0.180 |
2.80±0.10 |
2000 |
610 |
6.64 | ||
|
16 |
26/0.254 |
3.10±0.10 |
1000 |
305 |
4.18 | ||
|
14 |
41/0.254 |
3.50±0.10 |
1000 |
305 |
2.62 | ||
|
12 |
65/0.254 |
3.90±0.10 |
1000 |
305 |
1.65 | ||
|
10 |
105/0.254 |
5.10±0.10 |
1000 |
305 |
1.04 | ||
|
U11015CULT1 (TEW)(Top-coated) 先绞后镀 |
22 |
7/0.254 |
0.79 |
2.38±0.10 |
2000 |
610 |
16.70 |
|
20 |
7/0.320 |
2.55±0.10 |
2000 |
610 |
10.40 | ||
|
18 |
7/0.404 |
2.80±0.10 |
2000 |
610 |
7.06 | ||
|
U1105CULT1 (TEW)(Solid) 单条 |
26 |
7/0.404 |
0.79 |
2.00±0.10 |
2000 |
610 |
43.53 |
|
24 |
1/0.511 |
2.10±0.10 |
2000 |
610 |
27.25 | ||
|
22 |
1/0.643 |
2.25±0.10 |
2000 |
610 |
16.50 | ||
|
20 |
1/0.813 |
2.40±0.10 |
2000 |
610 |
10.30 | ||
|
18 |
1/1.024 |
2.65±0.10 |
2000 |
610 |
6.52 | ||
|
16 |
1/1.290 |
2.90±0.10 |
1000 |
305 |
4.10 | ||
|
14 |
1/1.630 |
3.25±0.10 |
1000 |
305 |
2.57 | ||
|
12 |
1/2.050 |
3.65±0.10 |
1000 |
305 |
1.62 | ||
|
10 |
1/2.588 |
4.20±0.10 |
1000 |
305 |
1.02 | ||
